Introduction of globe control valve:

What Is a Globe Valve? A Globe valve is a linear motion valve and is primarily designed to stop, start, and regulate flow.

Globe control valve composition:

Globe valve is composed of valve body, bonnet and bracket, valve stem, valve disc, valve seat, seal, inverted seal, valve stem nut, stuffing box, packing, packing gland, lock nut, hand wheel, bolt, nut And other important parts.

Globe valve structure:

The flow direction of the shut-off valve is unidirectional, and it moves from left to right and from bottom to top. For a single clapper seal, there will be a small diameter reduction at the clapper seal port, which is slightly smaller than the actual flow.

The switch of the globe valves for flow control is a multi-turn rotary switch. The handwheel has impact type and ordinary switch type. Generally, the impact type is designed for large-diameter or high-pressure globe valves. The ordinary low pressure uses the stem to rise and fall together with the hand wheel.

Generally, small-diameter flow control valves are connected by external threads, internal threads, ferrules, welding, etc., the general diameter is between DN5-DN25, mainly used in finely divided pipelines, such as needle-type cut-off valve. The slightly larger ones are mainly flanged. Of course, welding is also very common.

Types of flow control globe valve:

Classified by globe valve structure:

Single Seat Globe Control Valve

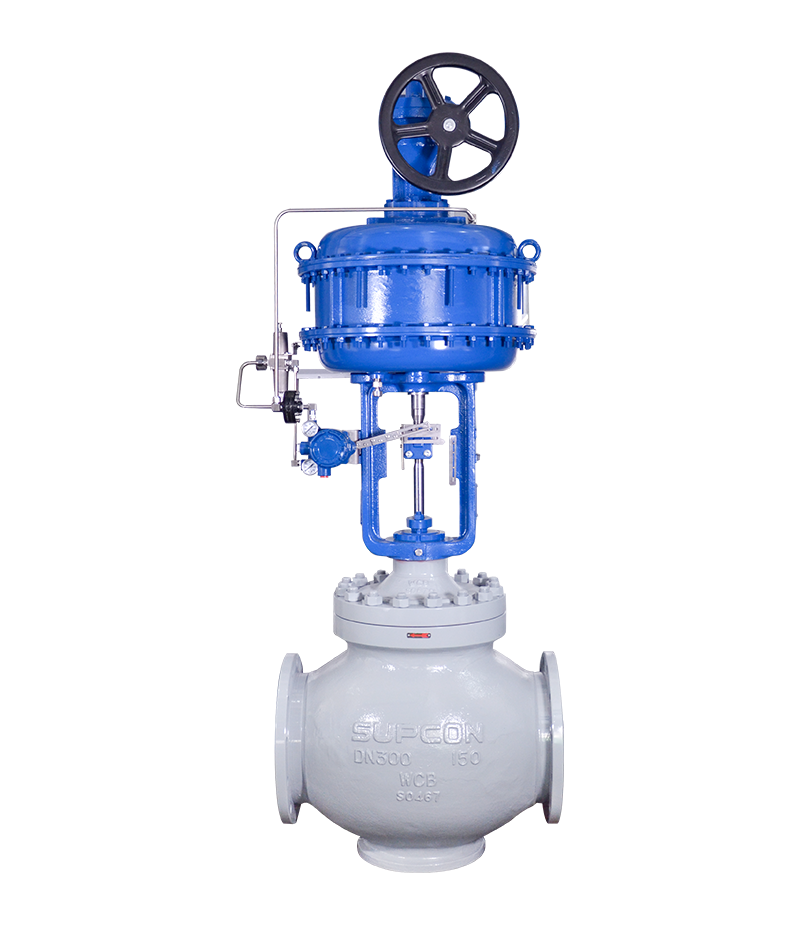

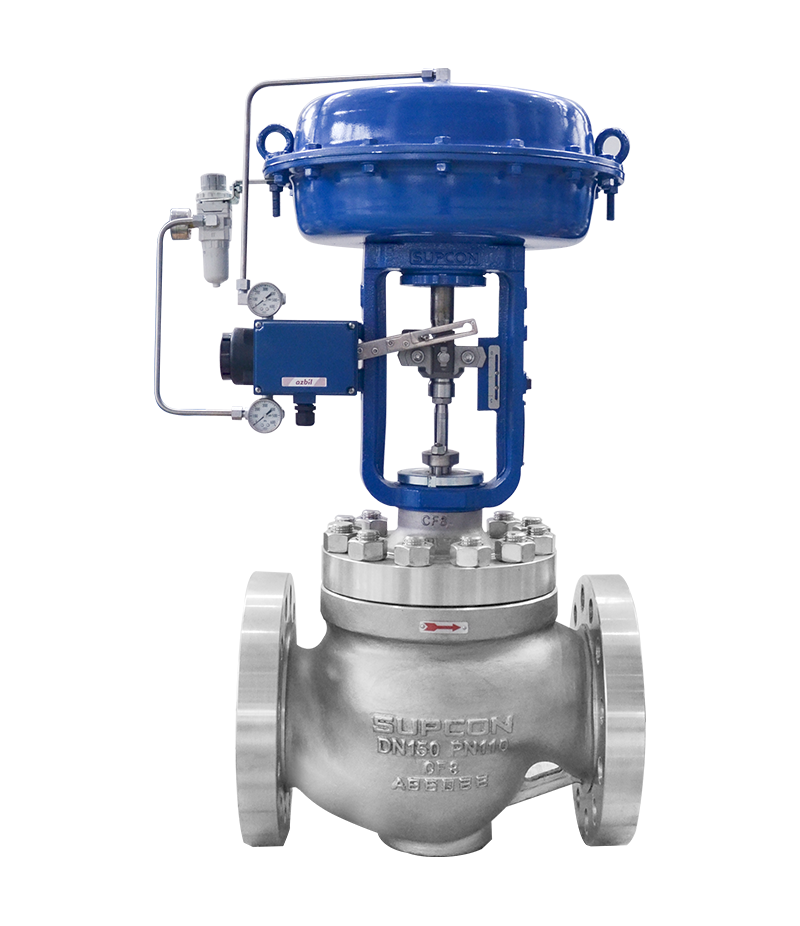

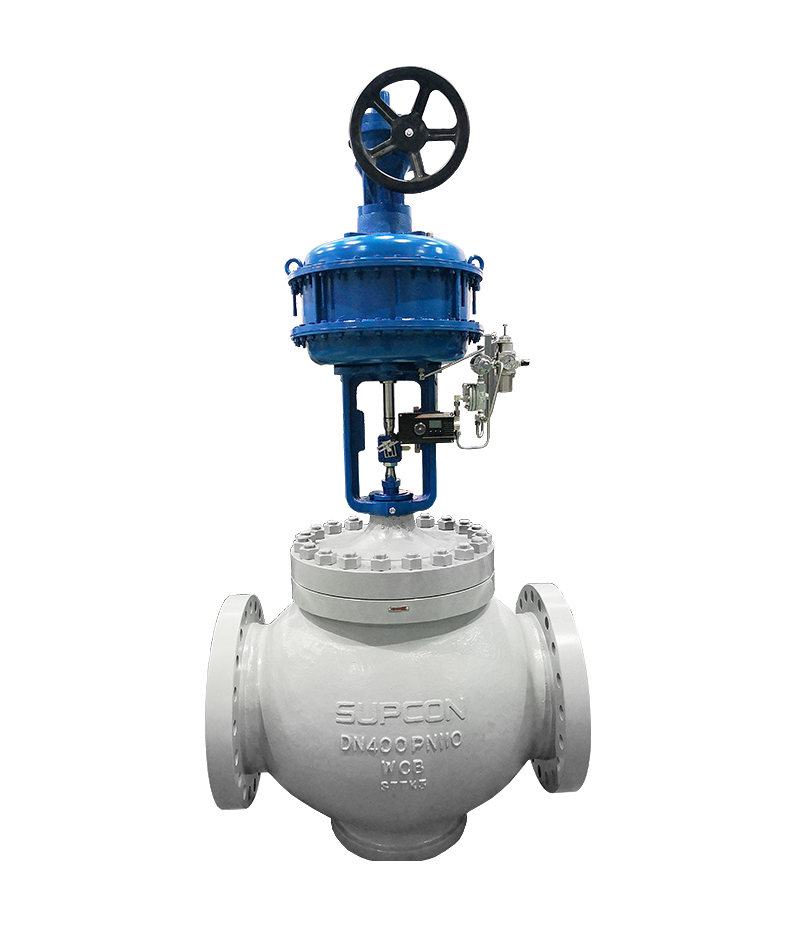

Cage Guided Globe Control Valve

Three-way Globe Control Valve

Classified by globe control valve use:

Power plants must use high-temperature and high-pressure or power plant-specific shut-off valves.

The ammonia gas or petroleum liquefied gas pipeline should select the special shut-off valve for petroleum liquefied gas.

If corrosion resistance and clean performance are required, stainless steel globe valves should be selected.

If it is corrosive and the temperature and pressure are not high, you can also choose fluorine-lined globe control valve or plastic globe valve.

In this article we introduced the application of the globe valve in detail.

SUPCON globe control valve:

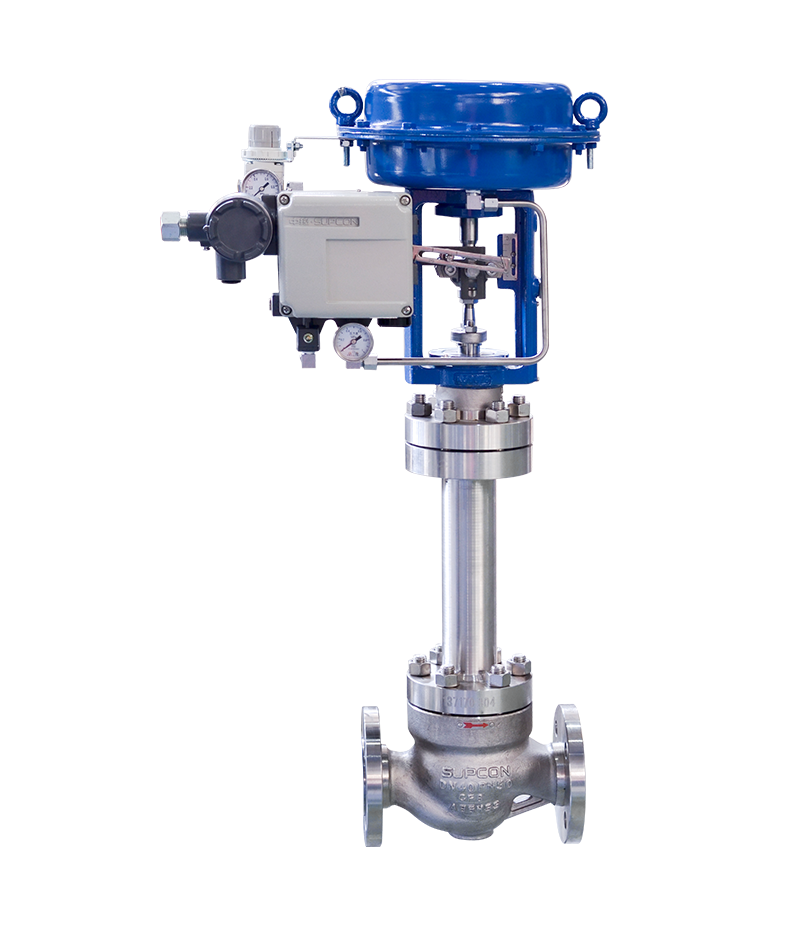

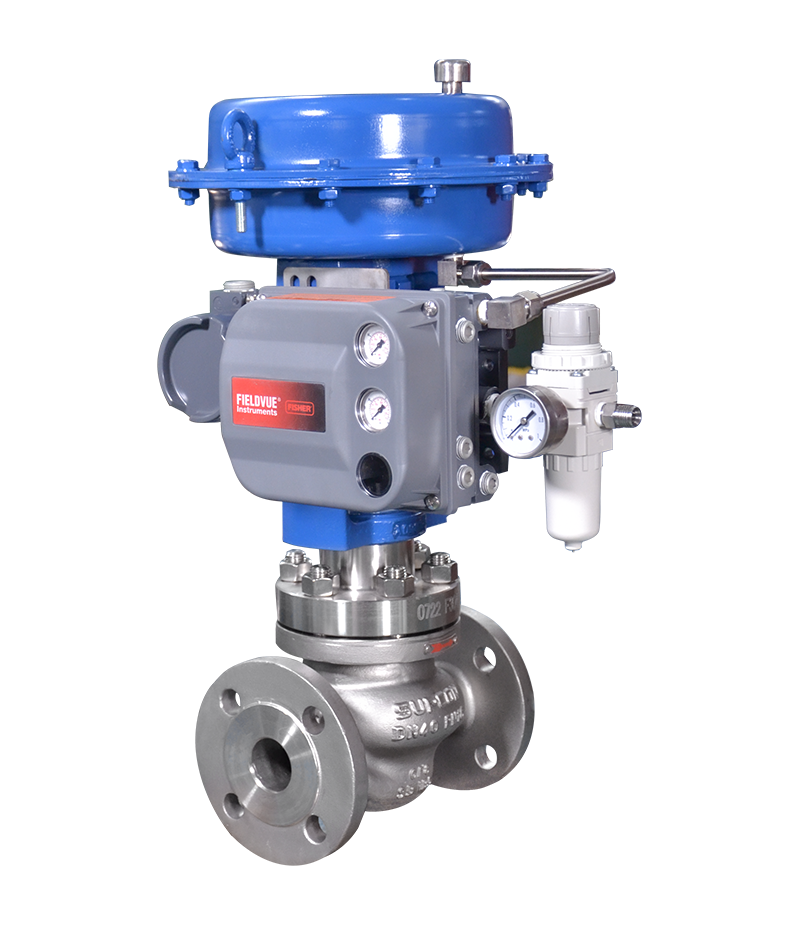

Founded in March 1993, SUPCON is one of China's industrial controls valves leading manufacturer and supplier of automation and information technology, products and solutions. We can provide high quality single seat globe valves, cage globe valves, bellows globe valves, click on the product links below to learn more.
