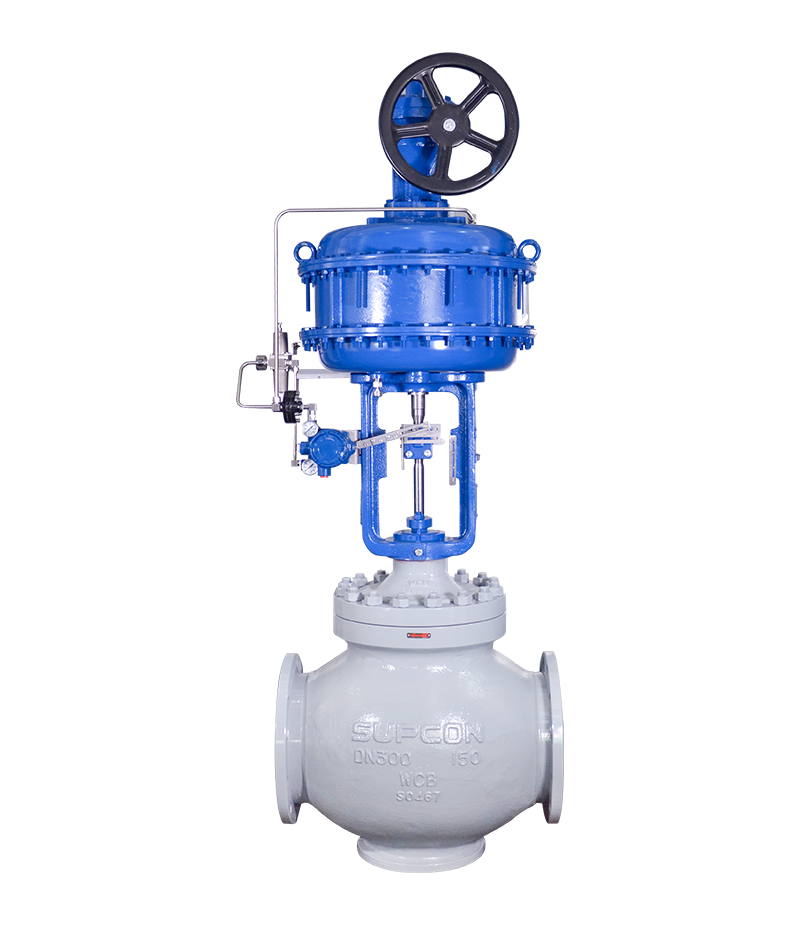

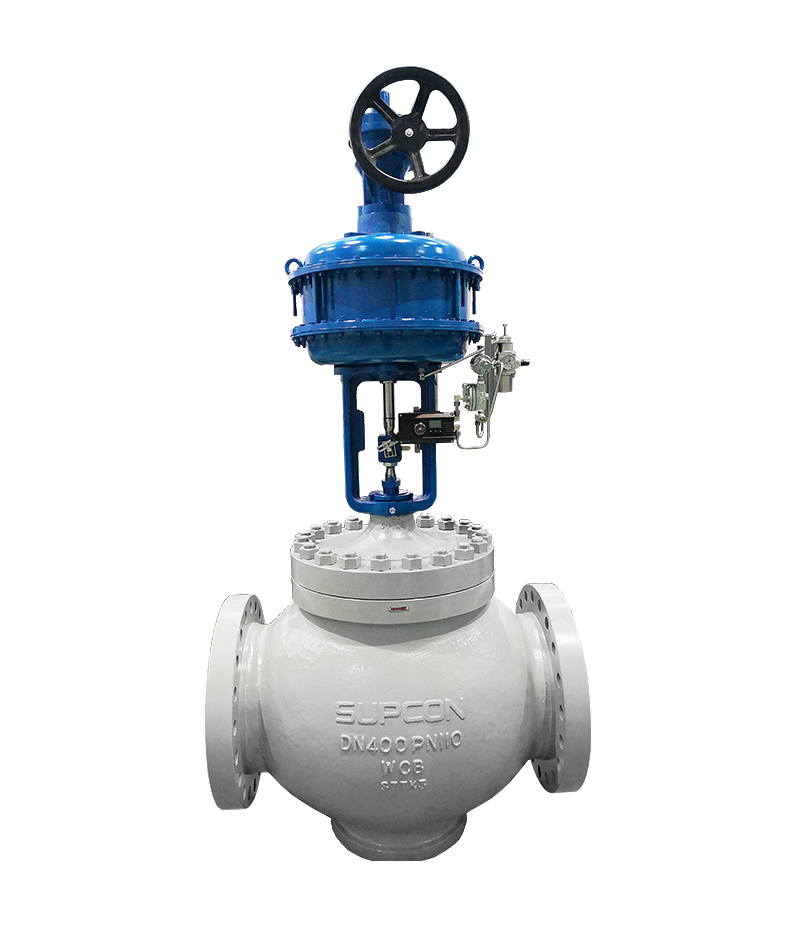

LN87 Series Cage Guided Globe Control Valve

LN87 series are LN8 series pressure balance single-seat valve products, one of the three basic guide sleeve, pressure balance type single-seat valves, with separate sleeve structure, high-performance metal piston seal, has the good dynamic stability, high control precision, allow the pressure difference is big, the operating force is small, large flow capacity, a broader range of applicable temperature etc. Suitable for fluid control of harsh working conditions.

Product Description

Cage Guided Globe Valve

Cage Guided Globe Valve is TÜV ISO 15848 certified in 2019. It has a split sleeve construction and a high performance balanced seal ring seal. Suitable for fluid control in ambient and priming conditions. Bellows seal type is available. Thousands of applications in the fine chemical, petrochemical, pharmaceutical and other industries.

Performance advantages

Modular design concept, combining the American and Japanese schools of high-precision control and the German school of modular concept.

The inner cavity of the valve body is S-shaped distribution, smooth and without dead ends; there are guide wings inside the valve body, which can reduce the mutual force of the medium inside the valve body and reduce the occurrence of cavitation.

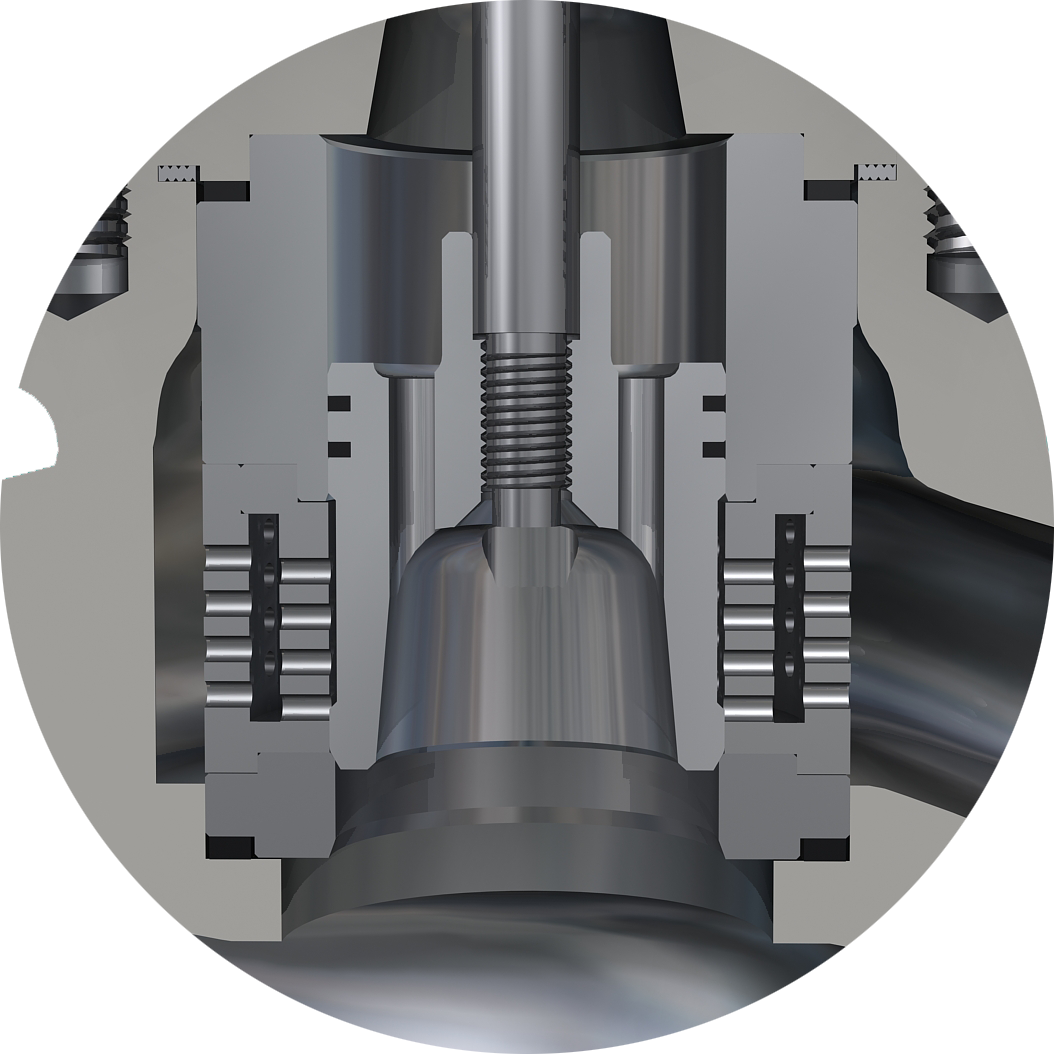

The use of sleeve guidance, large guide diameter, smooth guidance, with good dynamic stability.

The Cage Guided Globe Valve seat adopts floating design, while the sealing surface adopts tapered form to ensure good alignment of the sealing sub.

Sleeve window control flow characteristics, flow characteristics control accurately.

The structure of the inner part is balanced, allowing a large differential pressure, small operating force and large flow capacity.

Equipercent, linear and quick-open flow characteristics are available.

Good use in the temperature range of -80 to 593℃.

And pipeline connection with RF, RJ, FM and other flange type and SW, BW welding type.

The flange distance conforms to GB/T 17213.3-2005 / IEC 60534-3-1:2000; or ISA S75.03-1992 standard.

Long life

1. Valve Trims

According to the needs of the working conditions, different materials and surface hardening treatment can easily be chosen to meet the requirements of each function module of trim to improve its performance of the corrosion, cavitation and erosion resistant, lengthen service life.

2. Valve body

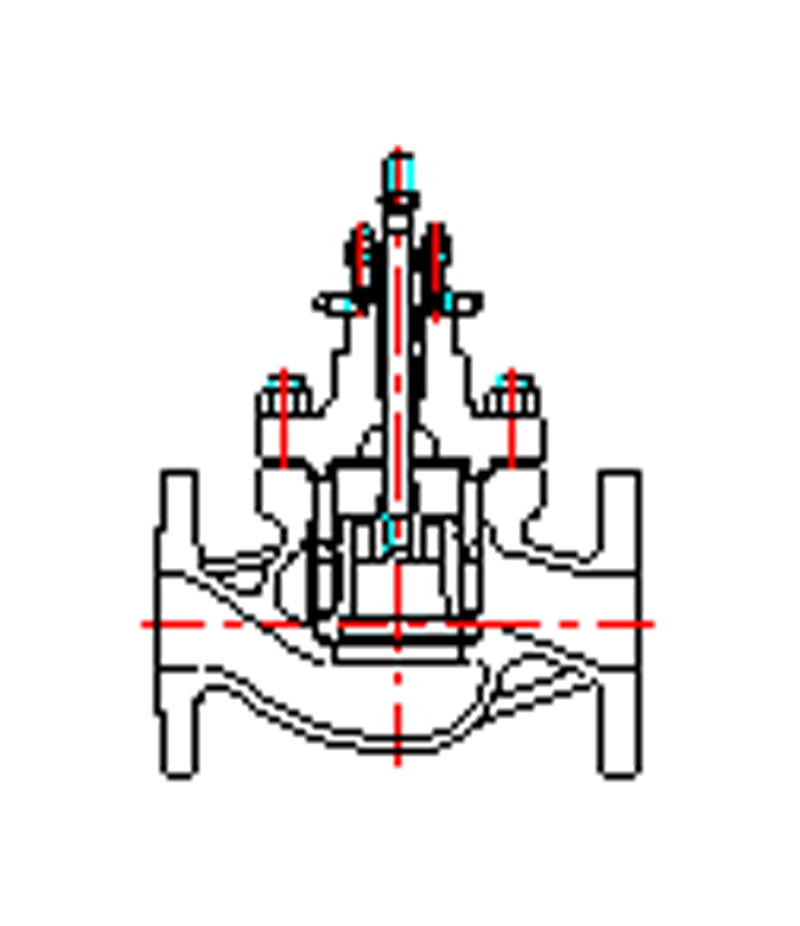

The body of Cage Guided Globe Valve consists of two passages from upper and lower, forming a shape like letter "S". The design of an elliptical section reduces the flow resistance and turbulent flow to keep the flow fluent. The flap in the middle of upper passage can reduce the eddy flow and increase the flow capacity.

LN81 Series Single Seat Globe Control Valve

3. Actuator

The standard mate of LN8 series is AM8 Multi-spring pneumatic diaphragm actuator, which can be used in many conditions with the features of strong output force, high reliability, long lifespan and extensive application. The output force changes with the number of springs. The high stress resistant diaphragm, bearing maximum pressure of 0.5 MPa air supply, gives control valve a reliable shutoff. This type of actuator has a long life cycle with more than 1 million times.

Well Sealed

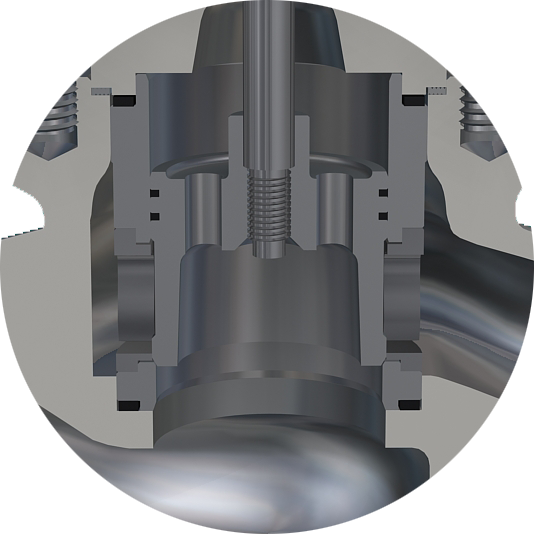

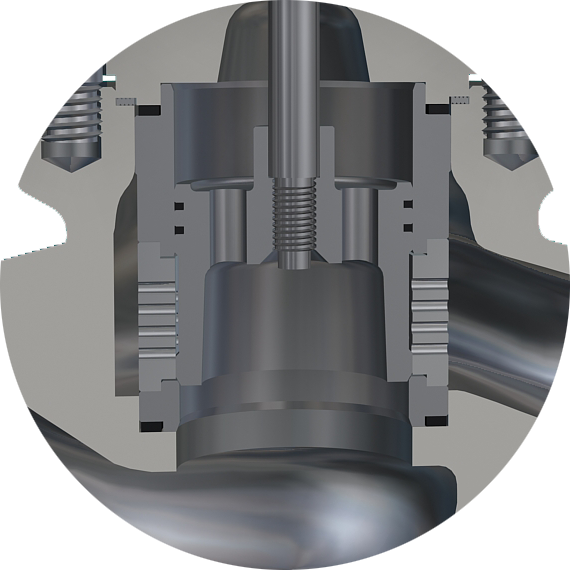

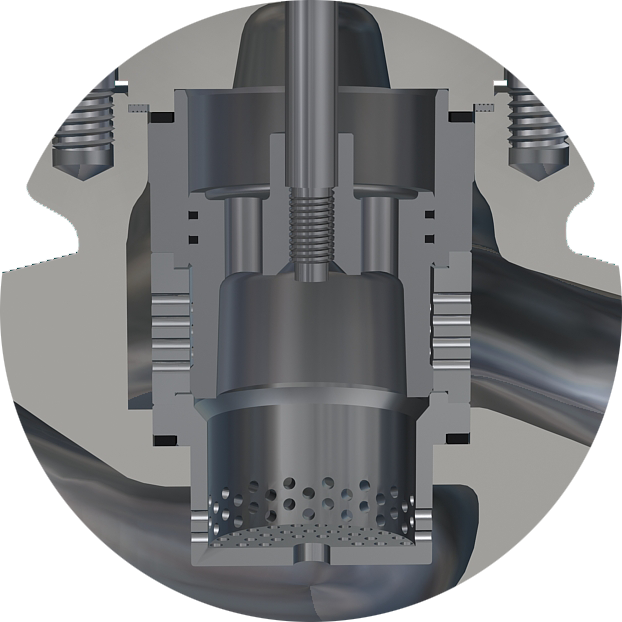

1. Structure

        A. New function modular design                                   B. Self-centring seat design

LN81 Series Single Seat Globe Control Valve

2. Packing system

The packing box assemblies are also optimized. Seal ring in the gland flange can prevent the dirt from entering and protect the packings. The V-ring is added with an U-groove and its angle is changed from conventional 90 to more efficient 85. The packing is a combination of alternating pure PTFE and PTFE with grafoil. When the temperature of fluid is above 200℃, the packing will be made by grafoil.

LN81 Series Single Seat Globe Control Valve

High Precision

LN8 series control valves are designed strictly on the basis of the IEC standard. They are the latest self-innovated modularized straight stroke control valve of SUPCON. We divide the trims into three modules, namely guide, control and seal module. We provide the best solution according to the function of each module and make action, control and seal more reliable.

Each index, linear, hysteresis, dead zone and leakage, for example, is full compliance with national standards.

Note: For below measured results, take LN8100 top guide single seat valve (PN110) as an example.

Test Items
National Standard
SUPCON Standard
Measured Results
Seat Leakage
0.06 L/min
0.064 L/min
0.01L/min
Rated Travel Error
+2.5%
+2%
1.32%
Start Error
±2.5%
±2%
0%
End Error
±2.5%
±2%
0.08%
BasicError
±1.5%
±1%
-0.52%
Hysteresis
1.5%
1%
0.16%
Dead Band
0.6%
0.4%
0.38%

Easy to maintain

The unique platform and modul design make it easy to remove and displace the parts without special tools, and moreover, easy to change the type of the valve only by changing few parts. A variety of material combinations is optional for the parts.

LN81 Series Single Seat Globe Control Valve

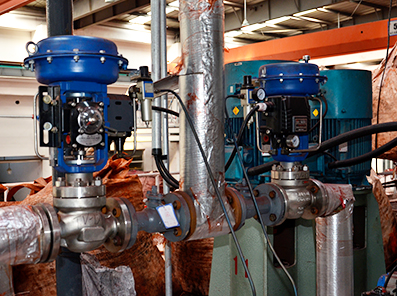

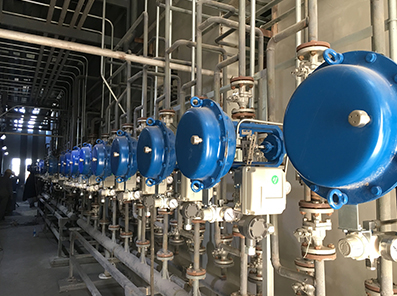

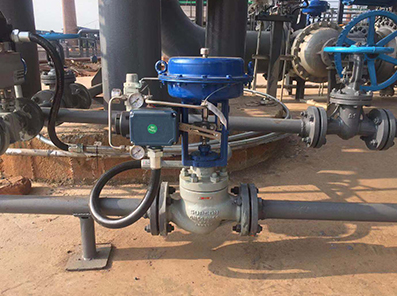

Typical performance

Sinosteel Equipment Co., Ltd, steam control valve spare parts

Ltd., 100,000 tons of coke oven tail gas to methanol project additional valves

Liaoning Baolai Bioenergy Co., Ltd, new modified asphalt plant project

Ningbo Huatai Shengfu Polymer Material Co., Ltd, 700,000 tons of young hydrocarbon using 400,000 tons/year polyethylene plant GLOBE valve



TECHNICAL PARAMETERS


Nominal SizeDN40 ~ DN400
Pressure RatingPN16/25/40/63/100;CL150(PN20)/300(PN50)/600(PN110)
Operateing Temperature-196℃~ 593℃
CharacteristicsEqual percentage, linear, quickly open
Rangeability50:1
Seat Leakage ClassANSI B16.104: IV、V、VI
Body MaterialWCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc.
Trim Material630/316/316+ST/316nitriding/316+Ni60/316+WC etc.
Seal MaterialPTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc.


Nominal diameter: DN40/50/65/80/100/125/150/200/250/300/350/400

Pressure rating: ANSI CL150/300/600; DIN PN16/25/40/63

Valve body and upper bonnet material: WCB, WC6, WC9, CF8, CF8M, etc.

Upper cover form: standard type (-17 ℃ ~ +316 ℃); high temperature type (+316 ℃ ~ +593 ℃); low temperature Ⅰ type (-45 ℃ ~ -17 ℃); low temperature Ⅱ type (-100 ℃ ~ -45 ℃); low temperature Ⅲ type (-196 ℃ ~ -100 ℃); bellows type (-45 ℃ ~ +350 ℃)

Packing type: PTFE+graphite V-shaped packing; flexible graphite ring packing; graphite+PTFE compilation packing; etc.

Flow characteristics: equal percentage (%); linear (L)

Adjustable ratio: 50:1

Allowable leakage: metal seal: ANSI B16.104 Class Ⅳ; soft seal: ANSI B16.104 Class Ⅵ
