Understanding O-Type Ball Valves: Features and Applications

Jun. 13, 2023

In the realm of industrial valves, the O-type ball valve stands out as a versatile and reliable component widely used in various industries. Its unique design and functionality make it suitable for a range of applications where flow control is essential. In this article, we will delve into the features and applications of O-type ball valves to provide a comprehensive understanding of this vital valve type.

Overview of O-Type Ball Valves

O-type ball valves are quarter-turn valves that utilize a spherical closure with a hollow center, known as the ball, to regulate fluid flow. The ball contains a cylindrical hole or port, known as the bore, that aligns with the pipeline when open and blocks the flow when closed. This simple yet effective design allows for quick and precise on/off control of the fluid.

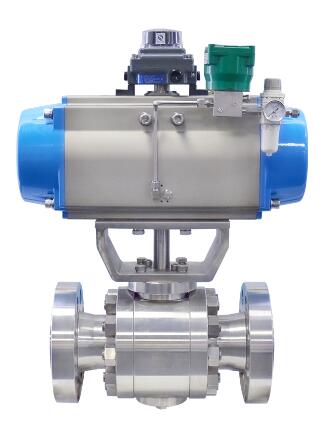

O-type Ball Valve

Key Features and Components

1. Ball and Bore Design

The O-type ball valve derives its name from the unique shape of the ball and bore. The ball has a characteristic "O" shape, where a portion of the ball is cut out to create a flow path when the valve is in the open position. This design offers low flow resistance and ensures minimal pressure drop across the valve, making it suitable for applications that require efficient flow control.

2. Actuation Mechanisms

O-type ball valves can be operated manually or automatically through various actuation mechanisms. Manual operation involves a lever or handwheel that rotates the ball to open or close the valve. Automatic actuation methods include pneumatic, electric, or hydraulic actuators, enabling remote or automated control of the valve.

3. Sealing Mechanism

To ensure reliable sealing, O-type ball valves typically employ two sealing mechanisms: the primary seal and the secondary seal. The primary seal is achieved by the contact between the ball and the valve seat, which prevents leakage when the valve is closed. The secondary seal, often in the form of an O-ring or a gasket, provides additional sealing protection.

4. Materials and Construction

O-type ball valves are available in various materials to suit different application requirements. Common materials include stainless steel, brass, carbon steel, and plastics. The choice of material depends on factors such as the type of fluid being handled, temperature, pressure, and environmental conditions. The valve body and trim construction should be robust to withstand the specific operating conditions.

Applications of O-Type Ball Valves

O-type ball valves find widespread usage in numerous industries due to their versatile characteristics. Some common applications include:


O-type ball valve

1. Oil and Gas Industry

O-type ball valves are extensively employed in the oil and gas industry for pipeline flow control, shut-off operations, and process control applications. Their ability to handle high pressures and temperatures, along with their durability and reliability, makes them suitable for upstream, midstream, and downstream operations.

2. Chemical and Petrochemical Industry

In chemical and petrochemical plants, O-type ball valves are used to regulate the flow of various corrosive and abrasive fluids. They are compatible with a wide range of chemicals and provide tight shut-off capabilities, ensuring the integrity and safety of the process.

3. Water and Wastewater Treatment

O-type ball valves play a vital role in water and wastewater treatment plants, where they control the flow of liquids in treatment processes, pumping stations, and distribution systems. Their robust construction and corrosion-resistant materials make them suitable for handling different water qualities and harsh environmental conditions.

4. Power Generation

In power plants, O-type ball valves are utilized for controlling the flow of steam, condensate, and other fluids in boiler systems, cooling water circuits, and fuel lines. They offer reliable shut-off capabilities, high-pressure resistance, and efficient flow control, contributing to the safe and efficient operation of power generation facilities.

5. General Industrial Applications

O-type ball valves are also employed in various other industrial sectors, including manufacturing, food and beverage, pharmaceuticals, and HVAC (heating, ventilation, and air conditioning). Their versatility, durability, and ease of operation make them suitable for a wide range of fluid control applications in these industries.

Conclusion

O-type ball valves are essential components in many industries, offering reliable and efficient flow control solutions. With their unique design, robust construction, and versatile applications, they provide precise on/off control, low flow resistance, and reliable sealing. Whether in the oil and gas industry, chemical plants, water treatment facilities, power generation plants, or general industrial applications, O-type ball valves demonstrate their value in maintaining process integrity and enhancing operational efficiency. We are an O-type ball valve supplier. If you are interested in our products, please contact us now
