Difference Between O-type Ball Valves And V-type Ball Valves

Jan. 04, 2024

In the intricate world of ball valves, the O-type and V-type ball valves stand out as distinct variations, each offering unique features and applications. Understanding the differences between these two types is crucial for selecting the most suitable valve for specific industrial or commercial needs. In this article, we will delve into the disparities between O-type and V-type ball valves.

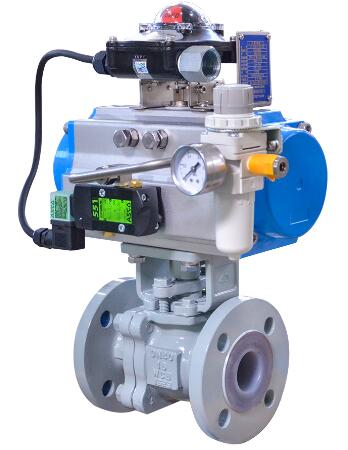

O-type Ball Valve

1. Valve Structure: O-Type Ball Valve

The O-type ball valve, as the name suggests, features a spherical ball with a bore in the shape of the letter 'O.' This design allows for a free flow of media through the valve when the ball is in the open position. When the valve is closed, the ball rotates, aligning the bore with the valve body's passageway, effectively blocking the flow of media.

2. Valve Structure: V-Type Ball Valve

In contrast, the V-type ball valve boasts a ball with a V-shaped bore. This design enables precise control over the flow of media. When the valve is in the open position, the V-shaped bore allows for a more gradual opening, providing better throttling capabilities compared to the O-type ball valve. When fully closed, the V-type ball valve ensures a tight seal, minimizing leakage.

3. Flow Characteristics: O-Type Ball Valve

The O-type ball valve is renowned for its excellent sealing properties and the ability to provide unobstructed flow when fully open. Its simplicity and reliability make it suitable for applications where on/off control is the primary requirement. The design is efficient for operations where minimal resistance to flow is essential.

4. Flow Characteristics: V-Type Ball Valve

Conversely, the V-type ball valve excels in applications that demand precise control over the flow rate. The V-shaped bore allows for more gradual adjustments, making it ideal for throttling applications. This type of valve is particularly advantageous in processes where managing flow variations is critical.

5. Applications: O-Type Ball Valve

O-type ball valves find their niche in applications where tight shut-off capabilities and unobstructed flow are paramount. Industries such as oil and gas, petrochemicals, and water treatment often rely on O-type ball valves for their simplicity, reliability, and effectiveness in on/off control situations.

6. Applications: V-Type Ball Valve

The V-type ball valve, with its superior throttling capabilities, is well-suited for processes requiring precise control over the flow rate. Industries such as chemical processing, pharmaceuticals, and certain water treatment applications benefit from the V-type ball valve's ability to regulate flow with enhanced accuracy.

Choosing the Right Valve: Factors to Consider

When deciding between O-type and V-type ball valves, several factors come into play:

ㆍFlow Control Requirements: Consider whether the application demands simple on/off control or precise throttling capabilities.

ㆍMedia Type: The nature of the media being transported plays a crucial role. Some media may require more precise control, making the V-type ball valve a preferred choice.

ㆍPressure and Temperature: Evaluate the pressure and temperature conditions of the application, as this can impact the valve's performance and material requirements.

Conclusion: Selecting the Ideal Valve for Your Needs

In conclusion, the choice between O-type and V-type ball valves depends on the specific requirements of the application. The O-type valve excels in simplicity and tight shut-off capabilities, while the V-type valve shines in processes demanding precise flow control. Understanding these differences is essential for making informed decisions in various industrial settings.

For assistance in selecting the right ball valve for your specific needs, feel free to contact us. As your reliable valve supplier, we are dedicated to providing expert guidance and high-quality solutions tailored to your unique requirements.
