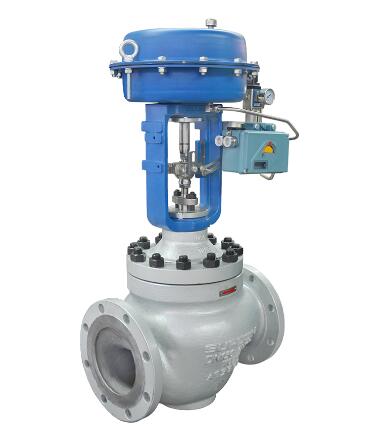

A globe control valve is a type of valve used to regulate the flow of fluids in a pipeline. It is named for its spherical body shape and is renowned for its ability to precisely control flow, making it a popular choice in various industrial applications. This article will explore the construction, operation, and applications of globe control valves, highlighting their importance in fluid control systems.

Construction of a Globe Control Valve

A globe control valve consists of several key components, including the body, bonnet, stem, plug (or disc), seat, and actuator. The body, which houses the internal components, is designed to withstand high pressures and temperatures. The bonnet, attached to the body, contains the stem, which connects to the plug. The plug is the component that moves to open or close the valve, controlling the flow of fluid through the valve seat. The actuator, which can be manual, pneumatic, hydraulic, or electric, provides the force needed to move the stem and plug.

The Body and Bonnet

The body of a globe control valve is typically made from materials such as stainless steel, cast iron, or other alloys, depending on the application and the fluid being controlled. The bonnet serves as a cover for the valve body, providing access to the internal components for maintenance and repair.

The Stem and Plug

The stem is a slender rod that connects the actuator to the plug. The plug, often disk-shaped, regulates the flow by moving towards or away from the valve seat. The precise movement of the plug allows for accurate control of fluid flow, making globe valves ideal for throttling applications.

The Seat and Actuator

The seat is a ring-like component that provides a sealing surface for the plug. The actuator, which can be powered by various means, moves the stem and plug assembly. Pneumatic and electric actuators are commonly used in automated systems, while manual actuators are used in simpler setups.

Operation of a Globe Control Valve

The operation of a globe control valve is relatively straightforward. When the actuator receives a signal, it moves the stem, which in turn moves the plug. The position of the plug relative to the seat determines the flow rate of the fluid. In a fully open position, the plug is lifted away from the seat, allowing maximum flow. Conversely, when the plug is fully seated, the flow is stopped. Intermediate positions of the plug allow for precise flow control.

Throttling and Flow Control

Globe control valves are particularly well-suited for throttling applications due to their ability to provide fine control over fluid flow. The design of the plug and seat ensures that even small movements of the plug result in proportional changes in flow rate. This characteristic makes globe valves ideal for applications requiring precise regulation of flow, such as in chemical processing, water treatment, and HVAC systems.

Pressure Drop and Flow Characteristics

One consideration when using globe control valves is the pressure drop across the valve. Due to the tortuous path that fluid must take through the valve, there is often a significant pressure drop. However, this characteristic can be advantageous in applications where pressure reduction is desired.

Applications of Globe Control Valves

Globe control valves are used in a wide range of industries due to their versatility and precise control capabilities. Common applications include:

Chemical Processing: Used to control the flow of chemicals and manage reaction rates.

Water Treatment: Employed to regulate water flow in filtration and distribution systems.

HVAC Systems: Used to control the flow of heating and cooling fluids in buildings.

Oil and Gas: Utilized in pipelines and processing plants for flow and pressure control.

Conclusion

Globe control valves are essential components in various industrial systems, offering precise flow control and reliable performance. Their design allows for accurate throttling, making them suitable for numerous applications. When choosing a globe control valve, it is crucial to consider the specific requirements of your application to ensure optimal performance. For more information on selecting the right valve or to find a trusted supplier, feel free to contact us.
