Butterfly valves are essential components in fluid control systems, providing a versatile and efficient means of regulating flow. Whether in industrial applications, water treatment plants, or HVAC systems, butterfly valves play a crucial role in controlling the movement of liquids and gases. In this comprehensive guide, we will explore the key aspects of butterfly valves, their types, applications, and advantages.


What are Butterfly Valves?

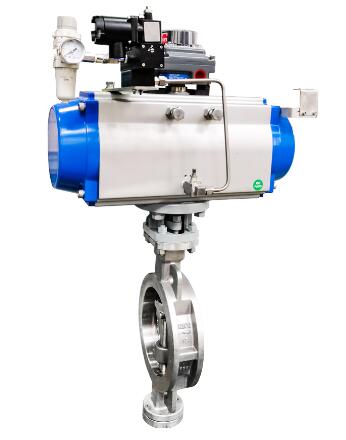

Butterfly Valve


1. Basic Functionality

A butterfly valve operates by using a flat disc, often referred to as a "butterfly," that is mounted on a rotating shaft. This disc controls the flow of the fluid by turning perpendicular to the flow axis when the valve is closed and parallel when fully open.

2. Types of Butterfly Valves

Concentric Butterfly Valves: The most common type, featuring a centrally placed disc.

Eccentric Butterfly Valves: The disc is offset from the center, providing improved sealing capabilities.

Triple Offset Butterfly Valves: Utilize three offsets for precise control and a tight seal.


Components and Construction


1. Body Materials

Butterfly valves can be constructed from various materials, including cast iron, stainless steel, and PVC. The choice of material depends on factors such as the type of fluid being handled and environmental conditions.

2. Disc Designs

Butterfly valve discs come in various designs, such as resilient-seated for tight shutoff, high-performance for precise control, and double-offset for reduced friction during operation.


Applications of Butterfly Valves


1. HVAC Systems

Butterfly valves are commonly used in heating, ventilation, and air conditioning (HVAC) systems to control the flow of air and water.

2. Water Treatment Plants

In water treatment plants, butterfly valves are employed for regulating the flow of water, chemicals, and other fluids in pipelines.

3. Industrial Processes

Various industries, including chemical, petrochemical, and food processing, utilize butterfly valves for their efficiency in controlling the flow of liquids and gases.


Advantages of Butterfly Valves


1. Cost-Effective

Butterfly valves are often more cost-effective than alternative valve types, making them a preferred choice for large-scale applications.

2. Quick Operation

The simple design of butterfly valves allows for quick opening and closing, enabling rapid response in emergency shutdown situations.

3. Low Maintenance

With fewer moving parts and a straightforward design, butterfly valves require less maintenance compared to some other valve types.


Considerations and Limitations


1. Pressure Limitations

Butterfly valves may have limitations in high-pressure applications, as excessive pressure can affect their sealing capabilities.

2. Size Considerations

While suitable for various sizes, extremely large butterfly valves may face challenges in terms of torque requirements and actuation.


Proper Installation and Maintenance


1. Proper Alignment

Proper alignment during installation is crucial for the optimal performance of butterfly valves. Misalignment can lead to increased wear and reduced efficiency.

2. Regular Inspections

Routine inspections and maintenance are essential to ensure that butterfly valves continue to operate efficiently. This includes checking for leaks, inspecting seals, and lubricating moving parts.


Conclusion


In conclusion, butterfly valves offer a versatile and cost-effective solution for controlling fluid flow in a wide range of applications. Their simple design, quick operation, and low maintenance requirements make them a popular choice in various industries. Understanding the different types, components, and considerations associated with butterfly valves is crucial for selecting and maintaining these essential components in fluid control systems.
