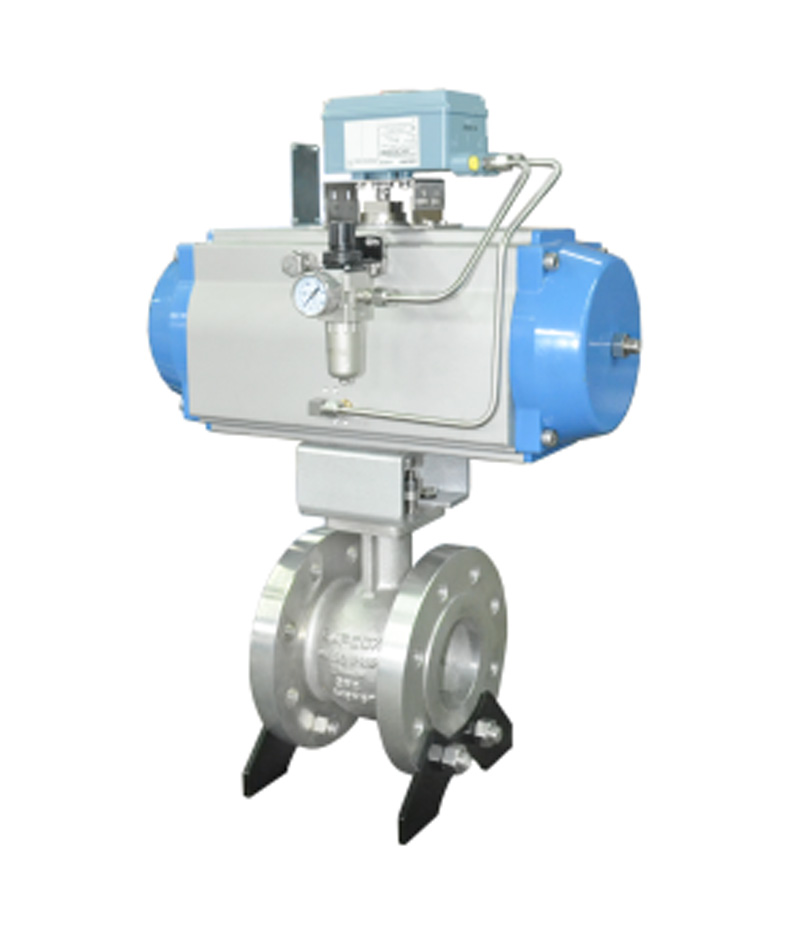

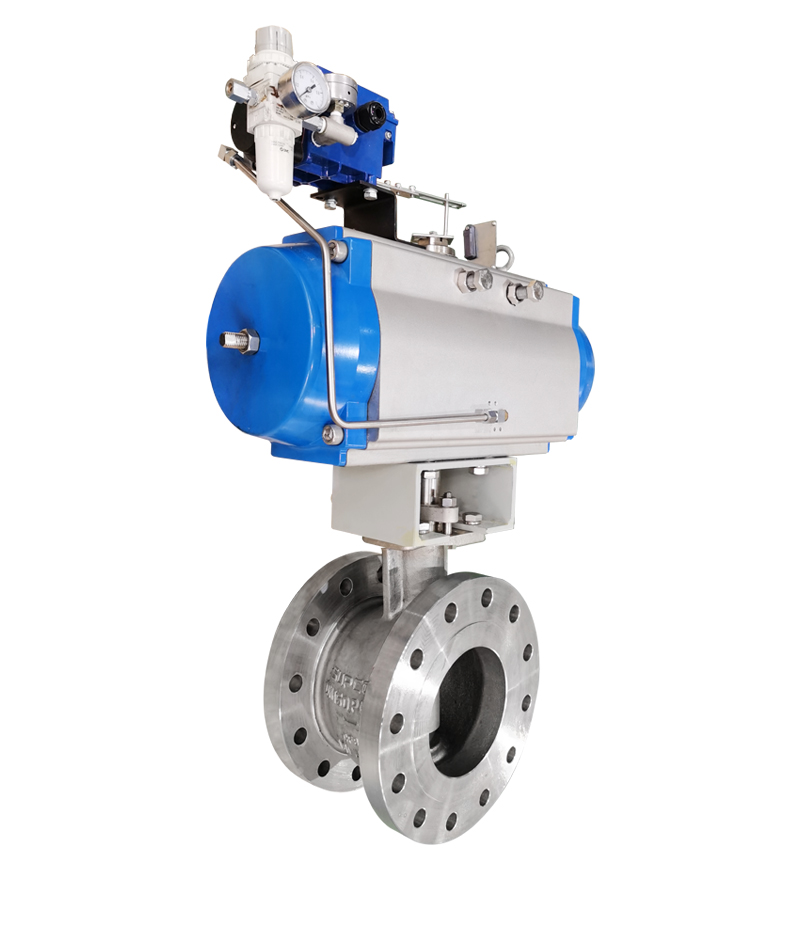

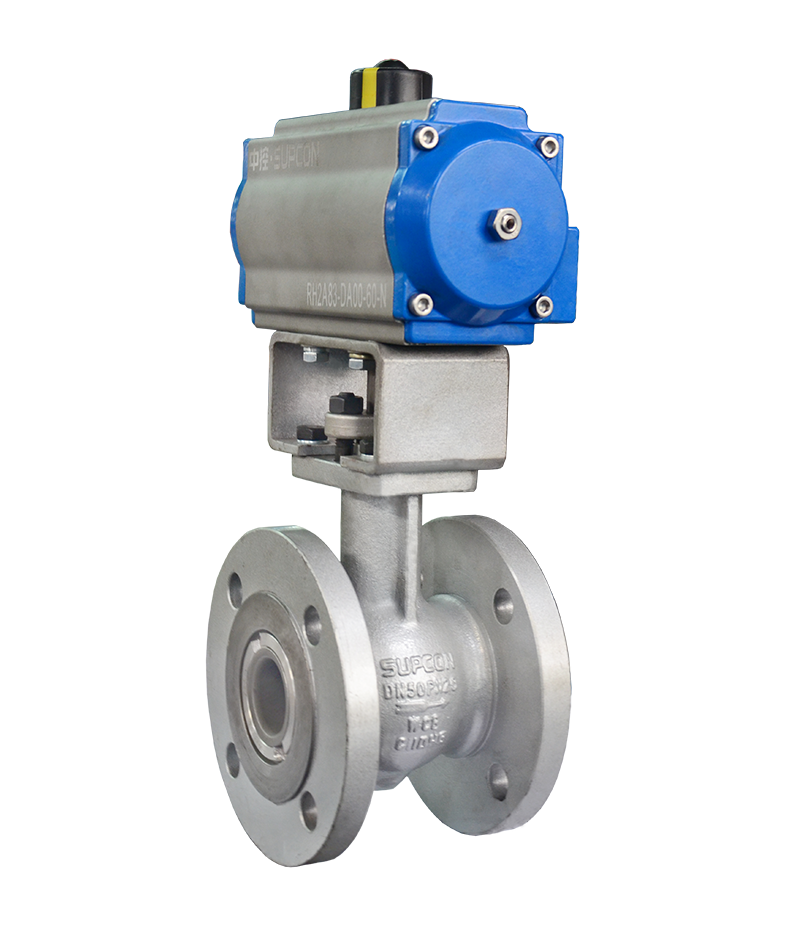

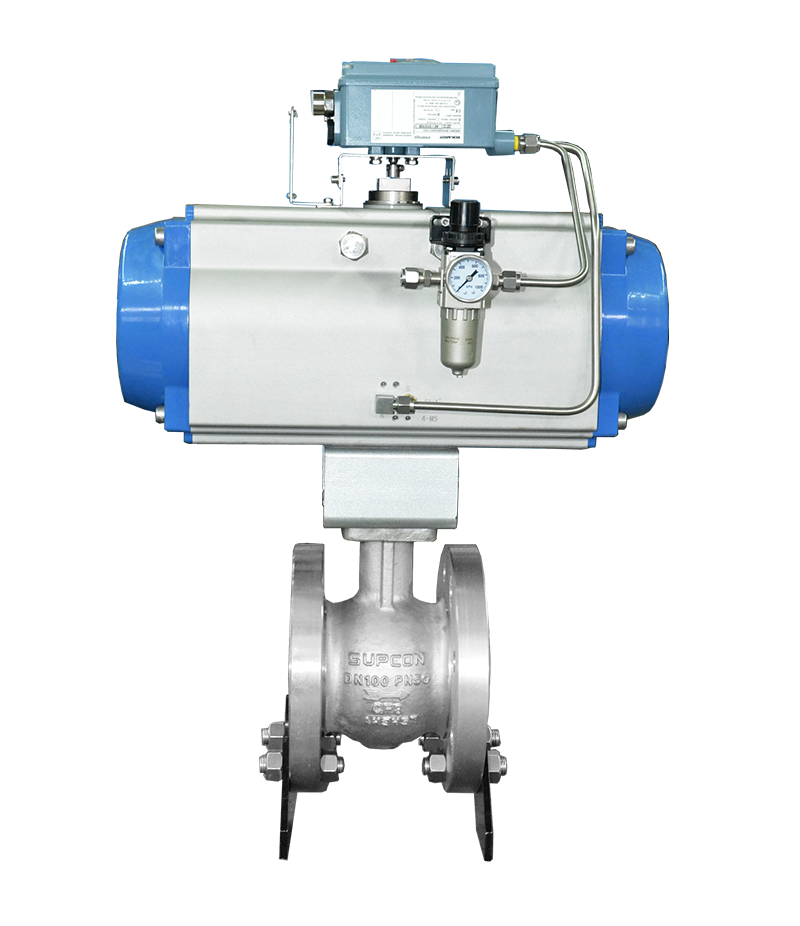

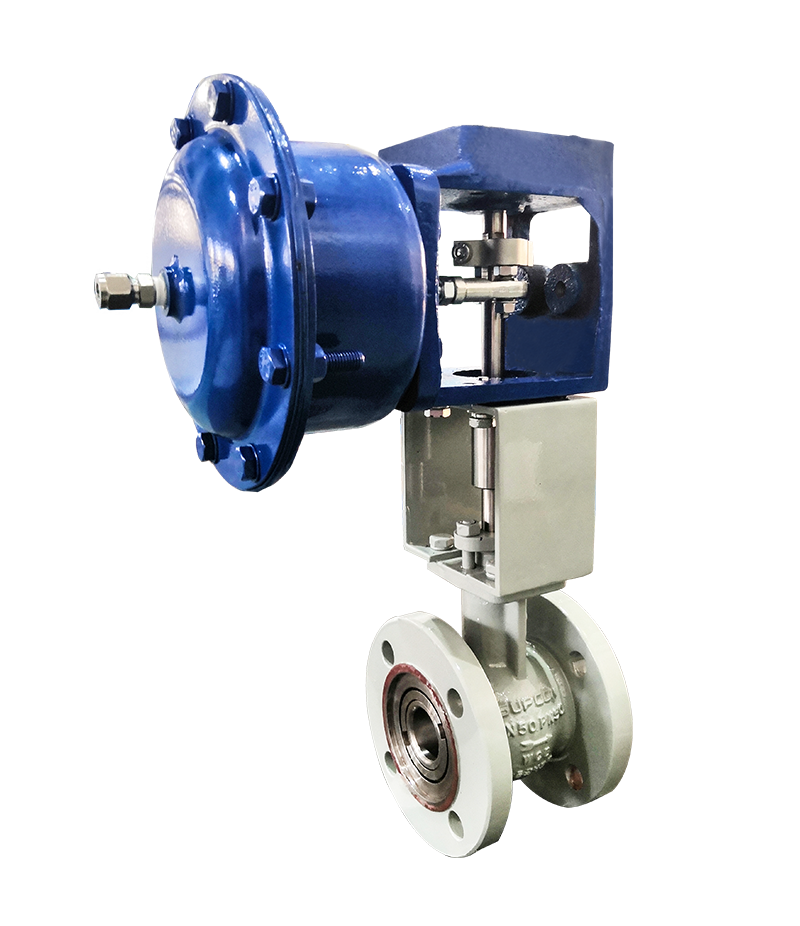

CN81 Series Eccentric Rotary Control Valve

CN8 series Eccentric Rotary Control Valve is a valve core is on the surface of the spherical cap eccentric Angle of schedule control valve, the one-piece, straight type runner body structure, the rotary center of the valve core is not concentric with the axis of rotation, can reduce the seat wear and prolong service life. It has excellent stability, resistance to erosion and corrosion resistant, reliable seal and the advantages of large flow adjustable range. In addition, the series of control valve compact structure, output torque, action quick, steady, long service life and can be widely used in petroleum, chemical industry, coal chemical industry, electric power, metallurgy and other industrial control area and heavy load.

Product Description

CN81 Series Eccentric Rotary Control ValveCN81 Series Eccentric Rotary Control ValveCN81 Series Eccentric Rotary Control ValveCN81 Series Eccentric Rotary Control Valve

TECHNICAL PARAMETERS


Eccentric Rotary Control Valve Main Parameters:


Nominal SizeDN25~DN300
Pressure RatingPN16/25/40/63/100;CL150(PN20)/300(PN50)/600(PN110)
Operateing Temperature-46℃~450℃
CharacteristicsApproximate linear
Rangeability100:1
Seat Leakage ClassANSI B16.104: IV、V、VI
Body MaterialWCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc.
Trim MaterialMetal:304+SN/304+SN;304+ST/304+ST;Soft:304+HCr/RTFE
Seal MaterialPTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc.
